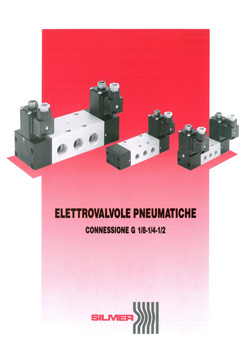

PNEUMATIC SOLENOID VALVES SERIES 38-48/34-44/32-42 G1/8-G1/4-G1/2 CONNECTION


This valves, built up with UNI 3571 Aluminium, are totally oxidate and are available in the following versions: Series E38-48 / E34-44 / E32-42. They are balance-coiled valves and their characteristic is the single movable element for the directional flow exchange, allowing the following advantages:
  • balance stability in every position because spool action is not affected by the feed pressure;
  • reduced maintenance as special oil resistant seals are stationary and the sliding of the nickel plated aluminiun alloy coil with inside surface microfinished, the wear is highly reduced.
All this characteristics, together with the response time and great capacity, allow exceptional performances and a proper, even and endless running.

TECHNICAL DATA

Maximum pressure: 10 bar

Working section: G1/8 = 25,96 mm2 - G1/4 = 56,74 mm2 - G1/2 = 183 mm2

Fluid: filtered, lubricated or not compressed air

Temperature: min –10 °C - max +60 °C
